3D Printing Helix Shapes and Artificial Muscles

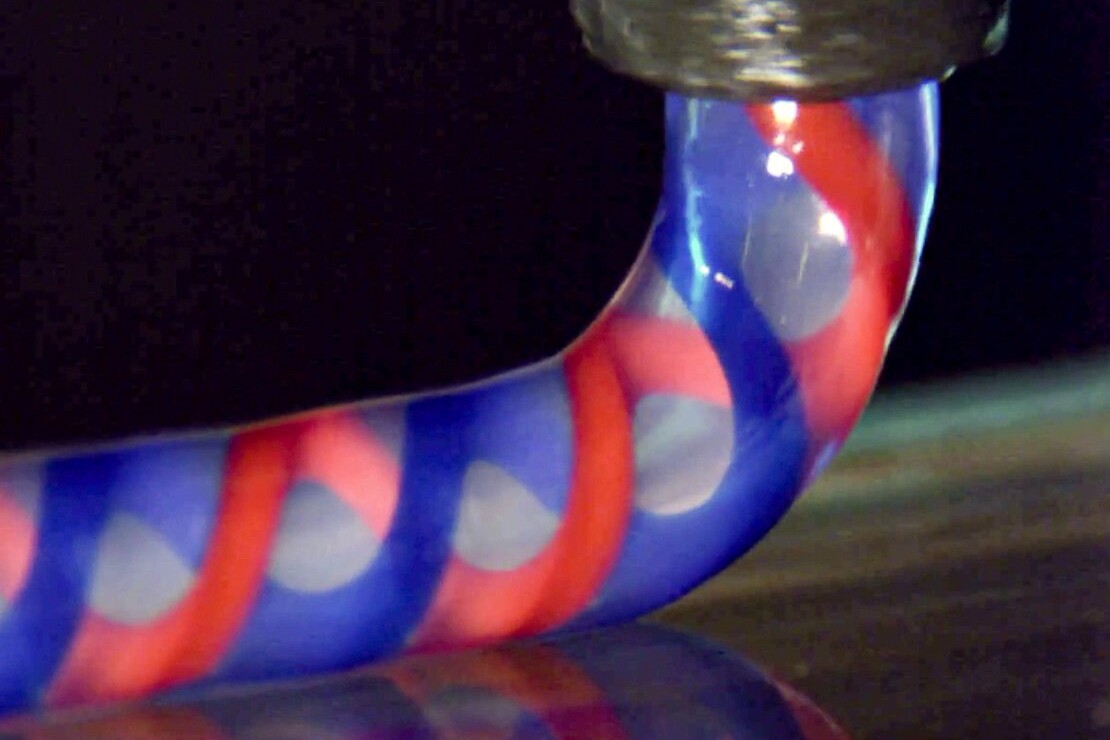

Discover the fascinating world of 3D printing with a twist! In a groundbreaking new approach, a rotating nozzle has been developed to print helix shapes using multiple materials simultaneously. This advanced technology allows researchers to create complex patterns within printed structures, offering unparalleled control over the properties of each part.

Explore how these innovations are being put to the test, from crafting artificial muscles that mimic biological movement to engineering filaments with varying properties along their length. This article unveils the potential of this revolutionary 3D printing technique and its promising applications.

$30 off $400+ Anycubic Products with code AC30OFF

Overview of 3D Printing Technology

Definition and History

3D printing, also known as additive manufacturing, is a transformative technology that brings digital designs to life by building objects layer by layer. The concept of 3D printing dates back to the early 1980s when Charles Hull invented stereolithography (SLA), the first commercialized form of 3D printing. Over the decades, 3D printing has evolved through numerous advancements in techniques, materials, and applications, making it a versatile and widely adopted technology in various industries.

Current Applications

Today’s 3D printing technology finds applications across a myriad of fields. In healthcare, it is used to create patient-specific prosthetics, implants, and even bioprinted tissues. The automotive and aerospace sectors utilize 3D printing for manufacturing complex components and lightweight parts. Additionally, industries such as fashion, art, and construction have embraced 3D printing to innovate designs and streamline production processes. From rapid prototyping to full-scale production, 3D printing continues to disrupt traditional manufacturing paradigms.

Materials Used in 3D Printing

A diverse range of materials is employed in 3D printing, each catering to specific needs and functionalities. Common materials include thermoplastics like PLA and ABS, metals such as titanium and aluminum, and specialized substances like ceramics. Furthermore, advancements in multi-material printing have enabled the use of conductive, dielectric, and flexible inks, broadening the scope of what can be achieved with 3D printing.

Introduction to Helix Shapes in 3D Printing

What Are Helix Shapes?

Helix shapes are spiral structures characterized by a three-dimensional coiled form. These shapes are commonly observed in nature, such as in DNA strands and tendrils of climbing plants. In the context of 3D printing, helix shapes refer to the deliberate creation of these spiral geometries, which can exhibit unique mechanical and functional properties.

Importance of Helical Structures

Helical structures are significant due to their inherent mechanical advantages and functional versatility. They can provide superior strength and elasticity, making them ideal for applications requiring flexible yet robust designs. In electronics, helical shapes facilitate the creation of components with enhanced conductivity. Additionally, their unique geometries offer aesthetic and functional benefits in a range of products from medical devices to consumer goods.

Challenges in Printing Helical Shapes

Printing helical shapes poses unique challenges compared to traditional forms. The intricate, spiraling geometry requires precise control over the printing process to ensure accuracy and structural integrity. Achieving the correct helix angle and maintaining consistent material deposition are critical, as any deviations can lead to defects or weakened structures. Additionally, multi-material printing of helixes demands advanced mechanisms to seamlessly transition between different inks.

Buy Photon Mono M5 Get Free 1KG Resin

The Rotating Multi-Material Nozzle

Design and Mechanics

The rotating multi-material nozzle represents a groundbreaking innovation in 3D printing technology. Unlike conventional static nozzles, this nozzle rotates along with its ink barrels, enabling the simultaneous extrusion of multiple materials. The design incorporates a central rotating mechanism that allows precise control over the deposition path and material composition, enhancing the ability to create complex patterns and structures such as helixes.

Advantages Over Conventional Nozzles

The rotating nozzle offers several advantages over traditional nozzles. It enables finer control at the voxel level, which is the 3D equivalent of a pixel, allowing for intricate detailing within each layer of the print. This capability leads to superior precision and the potential to create details smaller than what conventional nozzles can achieve. Moreover, the ability to rotate the nozzle while printing allows for dynamic adjustments in the helix angle and the orientation of different materials, providing unprecedented flexibility and control.

Potential Applications

The applications of the rotating multi-material nozzle are vast and varied. In the field of robotics, it can be used to print artificial muscles that mimic the movement of natural muscles. In electronics, the nozzle allows for the creation of components with integrated conductive and dielectric regions, enhancing the functionality of printed circuits. Additionally, in medical devices, the ability to print with multiple biocompatible materials opens new possibilities for implants and prosthetics with complex, customized geometries.

Controlling Printing Properties with the Rotating Nozzle

Voxel-Level Detail Control

One of the standout features of the rotating nozzle is its ability to control printing properties at the voxel level. This granularity of control enables the creation of highly detailed structures with varied functionalities within the same object. Each voxel can have different material properties, densities, and orientations, allowing for the design of intricate internal patterns and complex external shapes.

Adjusting Helix Angle

The rotating nozzle brings a new dimension to the printing of helical shapes by allowing the helix angle to be dynamically adjusted during the printing process. This flexibility means that different sections of the print can have varying mechanical properties, tailored to specific needs. Adjusting the helix angle can influence the elasticity, strength, and overall behavior of the printed object, making it possible to fine-tune performance characteristics.

On/Off Rotation Functionality

The on/off rotation functionality provides an added layer of control, enabling the nozzle to switch between static and rotating modes as needed. This feature is crucial for achieving precise transitions between different print patterns and materials. For example, you can maintain a single color on the outside of a print regardless of the shape, ensuring aesthetic consistency while embedding complex internal structures.

Materials and Inks for Printing Helix Shapes

Conductive Inks

Conductive inks are integral to printing electronic components with the rotating nozzle. These inks contain conductive particles, typically metals such as silver or copper, which allow electricity to flow through the printed material. When used in helical structures, conductive inks can create flexible circuits and components that maintain conductivity even when stretched or compressed.

Dielectric Inks

Dielectric inks, on the other hand, are used to insulate different parts of an electronic circuit. These inks prevent the flow of electricity, ensuring that conductive paths remain isolated. By incorporating dielectric inks into helical 3D prints, you can create complex, multi-material structures that function as complete electronic systems, with both conductive and insulating regions precisely placed as needed.

Combining Multiple Inks

Combining conductive and dielectric inks within a single print allows for the creation of advanced, multifunctional components. The rotating nozzle’s ability to dynamically switch between different materials facilitates the seamless integration of these inks, enabling the design of printable electronics and other complex devices. This capability is particularly beneficial for creating artificial muscles and adaptive structures that require precise material property control.

Artificial Muscles from 3D Printed Helix Shapes

Mechanism of Operation

Artificial muscles created from 3D printed helix shapes operate on the principle of electroactive polymers or other similar mechanisms. When a voltage is applied across the helix, the conductive ink within the structure activates, causing the muscle to contract or expand. This mimics the natural movement of biological muscles and can provide a wide range of motion and force, depending on the design and materials used.

Applications in Robotics

In robotics, these 3D printed artificial muscles offer several advantages over traditional actuators. They are lighter, more flexible, and capable of generating smooth, organic movements. This makes them ideal for applications requiring delicate touch and adaptability, such as robotic prosthetics, soft robotics, and advanced manipulators. The ability to print muscles with precise control over their mechanical properties allows for customized solutions tailored to specific robotic applications.

Accuracy and Error Management

Creating artificial muscles with the required accuracy is critical for their effective operation. The rotating nozzle’s precise control over material placement and the helix angle ensures that each muscle is printed to exact specifications, minimizing errors that could impair functionality. Researchers continuously refine their techniques to achieve higher fidelity and reliability, addressing potential sources of error and enhancing the performance of the printed muscles.

Printing Filaments with Variable Properties

Changing Helix Angles

The ability to change helix angles during the printing process allows for the creation of filaments with variable properties along their length. By adjusting the helix angle, you can influence the flexibility, strength, and deformation behavior of the filament. This capability is particularly useful for applications requiring materials that perform differently in various sections, such as adaptive materials and smart textiles.

Property Control in Different Sections

Controlling properties in different sections of a filament opens new possibilities for custom-designed materials. For example, a single filament can have sections with varying degrees of stiffness, elasticity, or conductivity, tailored to specific functional requirements. This precision in property control can lead to innovations in fields such as wearable technology, where customized material performance is crucial.

Potential Uses and Applications

Filaments with variable properties have a wide range of potential applications. They can be used in creating adaptive structures that respond to environmental changes or mechanical stresses. In the healthcare industry, such filaments can lead to advanced medical devices and implants with region-specific functionality. Additionally, in the aerospace and automotive sectors, materials with tailored properties can enhance the performance and durability of components.

Technological Advancements and Future Directions

Ongoing Research Efforts

Researchers are actively exploring new ways to enhance the capabilities of the rotating multi-material nozzle and other 3D printing technologies. Ongoing research focuses on improving material formulations, optimizing nozzle designs, and developing advanced control algorithms. These efforts aim to push the boundaries of what is possible with 3D printing, enabling more complex and functional prints.

Future Enhancements

Future enhancements in 3D printing technology are likely to include increased precision, faster printing speeds, and the ability to print with a broader range of materials. Advancements in software and machine learning could lead to smarter printers that can autonomously adjust settings for optimal print quality. Moreover, innovations in nozzle design and material science will continue to expand the possibilities for multi-material and helical printing.

Expanding Potential Applications

As technology advances, the potential applications of 3D printing with rotating nozzles and other innovations will continue to grow. New industries may adopt these technologies for applications not yet imagined. For instance, space exploration could benefit from the ability to print complex structures in microgravity, while the fashion industry could see the emergence of customizable, high-performance fabrics. The future of 3D printing holds exciting prospects for numerous fields.

Case Studies and Practical Demonstrations

Examples of Artificial Muscles

One compelling example of the application of rotating nozzle technology is the creation of artificial muscles. Researchers have successfully printed muscles that can contract and expand in response to electrical stimuli, mimicking the natural movements of biological muscles. These artificial muscles have been demonstrated in robotic arms and prosthetic devices, showcasing their potential in enhancing human-robot interaction and rehabilitation technologies.

Other Practical Implementations

Beyond artificial muscles, the rotating nozzle has been used to print a variety of innovative structures. For instance, lattice structures with region-specific properties have been created to demonstrate controlled deformation and break points. This capability has significant implications for safety features in automotive and aerospace applications, where controlled failure mechanisms can enhance crashworthiness and durability.

Videos and Demonstrative Experiments

To bring these advancements to life, numerous videos and demonstrative experiments are available that showcase the capabilities of the rotating nozzle and its applications. These visual demonstrations provide a deeper understanding of how the technology works, the precision it offers, and the potential it holds for future innovations. Observing these practical implementations helps to appreciate the transformative impact of 3D printing with a twist.

Conclusion

Recap of Key Points

In summary, 3D printing technology has come a long way since its inception, now finding applications across diverse industries. The introduction of rotating multi-material nozzles has opened new frontiers in the creation of complex structures such as helical shapes. This technology offers finer control at the voxel level, enabling the precise adjustment of mechanical properties and the seamless integration of multiple materials.

Future Prospects

The future of 3D printing with rotating nozzles looks promising, with ongoing research and advancements paving the way for even greater capabilities. Future enhancements in precision, speed, and material diversity will further expand the potential applications, bringing innovations in fields such as robotics, healthcare, and beyond.

Final Thoughts

3D printing continues to revolutionize the way we think about manufacturing and design. With the advent of technologies like the rotating multi-material nozzle, the possibilities are endless. As we continue to explore and develop these capabilities, we can look forward to a future where the boundaries of what we can create are limited only by our imagination.
